Centralized Authentication with Apache APISIX Plugins example

Concepts

We should learn a couple of core concepts before Apache APISIX work as per our needs.

Route is the most critical concept in Apache APISIX; it instructs APISIX how to forward traffic to the correct upstream.
Upstream is the view of backend microservices from Apache APISIX point of view.
Plugin is a mechanism to manage traffic (authentication, authorization, and so on) on the APISIX side.

Pre-requisites

Installed Docker and Docker Compose component.
We use the curl command for API testing. You can also use other tools such as Postman for testing.

Install Apache APISIX

Download the Docker image of Apache APISIX.

git clone https://github.com/apache/apisix-docker.git

Switch the current directory to the apisix-docker/example path.

cd apisix-docker/example

Run the docker-compose command to install Apache APISIX.

docker-compose -p docker-apisix up -d

HTTP Basic Authentication

The simplest way to handle authentication is through the use of HTTP, where the username and password are sent alongside every API call. You can use an HTTP header and encode the username and password.

The Apache APISIX basic-auth plugin is an authentication plugin that works with the consumer object. In the context of an HTTP transaction, basic access authentication is a method to provide a user name and password when making a request.

Let’s enable basic-auth plugin for a consumer and configure the value of username and password.

curl http://127.0.0.1:9080/apisix/admin/consumers -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d '
{
    "username": "foo",
    "plugins": {
        "basic-auth": {
            "username": "example_username",
            "password": "your_strong_password"
        }
    }
}'

When the consumer is created successfully, you will get the following JSON object in the response:

{
  "node": {
    "value": {
      "create_time": 1650866058,
      "username": "foo",
      "update_time": 1650866058,
      "plugins": {
        "basic-auth": {
          "password": "your_strong_password",
          "username": "example_username"
        }
      }
    },
    "key": "/apisix/consumers/foo"
  },
  "action": "set"
}

Afterwards, we need to add a Route and allow basi-auth to control the requests by specifying it in plugins settings:

curl http://127.0.0.1:9080/apisix/admin/routes/1 -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d '
{
    "methods": ["GET"],
    "uri": "/get",
    "plugins": {
        "basic-auth": {}
    },
    "upstream_id": "1"
}'

Apache APISIX servers responds with the success:

{
  "node": {
    "value": {
      "methods": [
        "GET"
      ],
      "upstream_id": "1",
      "uri": "/get",
      "update_time": 1650866398,
      "plugins": {
        "basic-auth": {
          "hide_credentials": false
        }
      },
      "status": 1,
      "create_time": 1648567195,
      "id": "1",
      "priority": 0
    },
    "key": "/apisix/routes/1"
  },
  "action": "set"
}

Up to now, we have all set, and we can test different cases below:

Case 1: Requesting /get endpoint without authorization details.

curl -i http://127.0.0.1:9080/get

You will receive the HTTP 401 error in the response, as we expected:

{"message":"Missing authorization in request"}

Case 2: When the user provides valid username and password.

curl -i -uexample_username:your_strong_password http://127.0.0.1:9080/get

Urraa! Now we got 200 OK response from the upstream indicating that authentication plugin is working well.

HTTP/1.1 200 OK
...

Case 3: When we access the upstream with wrong user credentials.

curl -i -uexample_username:wrong_password http://127.0.0.1:9080/get

Correct, we got an error saying that "Password is incorrect"

{"message":"Password is error"}

That’s all about basic-auth plugin setup.

API Key Authentication

In the previous section, we demonstrated the usability of one type of authentication methods with the help of APISIX basic-auth plugin. Now let’s have a look another plugin key-auth

This technique creates unique keys for users and passes them with every request. The API generates a secret key that is a long, difficult-to-guess string of numbers and letters—at least 30 characters long, although there’s no set standard length. It is typically passed alongside the API authorization header.

The Apache APISIX key-auth Plugin is an authentication plugin, it should work with consumer together.

Add Key Authentication (also sometimes referred to as an API key) to a Service or a Route. Consumers then add their key either in a query string parameter or a header to authenticate their requests.

To enable key-auth plugin, two steps needs to be done:

Step 1: Create a consumer object, and set the attributes of plugin key-auth.

See the command

curl http://127.0.0.1:9080/apisix/admin/consumers -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d '
{
    "username": "example_username",
    "plugins": {
        "key-auth": {
            "key": "auth-one"
        }
    }
}'

The response from APISIX, you can expect like below:

{
  "node": {
    "value": {
      "username": "example_username",
      "update_time": 1650822986,
      "plugins": {
        "key-auth": {
          "key": "auth-one"
        }
      },
      "create_time": 1650822986
    },
    "key": "/apisix/consumers/example_username"
  },
  "action": "set"
}

Step 2: After we enabled key-auth plugin, we can create a new route and apply key-auth plugin configuration. For the simplicity, we can keep JSON Object for key-auth plugin as an empty.

See the command

curl http://127.0.0.1:9080/apisix/admin/routes/1 -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d '
{
    "methods": ["GET"],
    "uri": "/get",
    "plugins": {
        "key-auth": {}
    },
    "upstream_id": "1"
}'

By default, APISIX sets key name as apiKey in the header, you can also customize default header by adding configuration for the key-auth plugin

{
    "key-auth": {
        "header": "Authorization"
    }
}

You wil get the following reponse from Admin API endpoint:

{
  "node": {
    "value": {
      "uri": "/get",
      "priority": 0,
      "status": 1,
      "plugins": {
        "key-auth": {
          "header": "apikey",
          "query": "apikey"
        }
      },
      "create_time": 1648567195,
      "update_time": 1650823379,
      "methods": [
        "GET"
      ],
      "upstream_id": "1",
      "id": "1"
    },
    "key": "/apisix/routes/1"
  },
  "action": "set"
}

Now we can test our key-auth plugin by accessing our GET endpoint without apiKey header.

curl http://127.0.0.2:9080/get

As we expected, it returns an error with 401 HTTP Status code:

{"message":"Missing API key found in request"}

However, if we specify the apiKey in the header, it should respond with the success:

curl http://127.0.0.2:9080/get -H 'apikey: auth-one' -i

Great, now the API Key authentication is enabled for the endpoint.

HTTP/1.1 200 OK
Content-Type: application/json
Content-Length: 326
Connection: keep-alive
...

Another scenario is when the user is trying to access the endpoint with wrong apiKey

curl http://127.0.0.2:9080/get -H 'apikey: wrong_api_key' -i

Output:

{"message":"Invalid API key in request"}

JWT Plugin

Apache APISIX API Gateway acts as a single entry point and offers many authentication plugins, including:

The JWT (JSON Web Token) plugin is another solid option for API gateway authentication. JWT simplifies authentication setup, taking care of the nitty-gritty details. Please refer to JWT for more information.

The Apache APISIX JWT Plugin acts as an issuer and also validates the token on behalf of the API. It means that developers do not have to add any code to process the authentication.

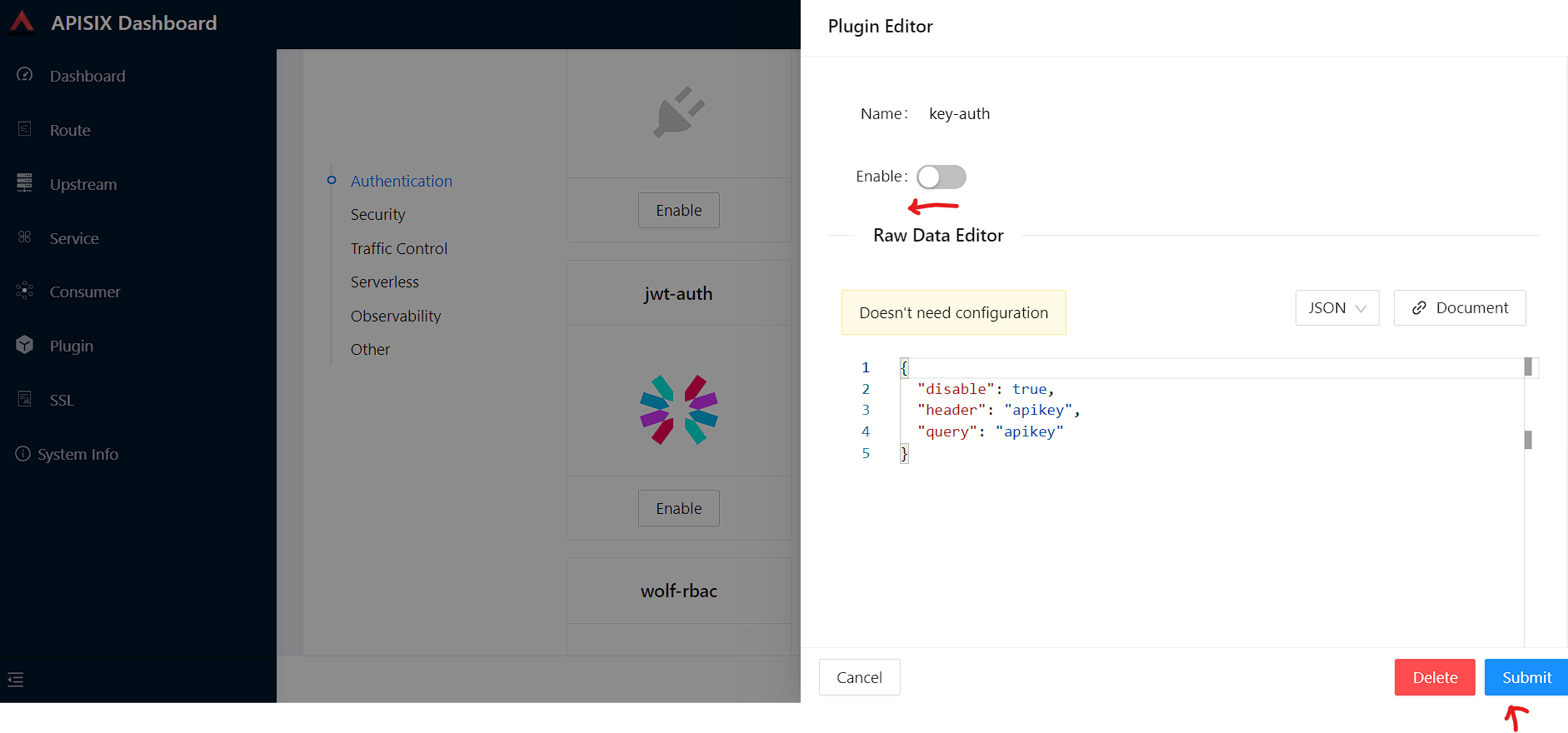

We need to disable the key-auth plugin we previously enabled to use another authentication plugin. Disabling is possible via the Dashboard or the CLI.

Let’s apply the JWT plugin to our existing API. We update the existing Consumer plugin config with JWT-related configuration:

See the command

curl http://127.0.0.1:9080/apisix/admin/consumers -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d '
{
    "username": "example_consumer",
    "plugins": {
        "jwt-auth": {
            "key": "user-key",
            "secret": "my-secret-key"
        }
    }
}'

The response will look something like this:

{
  "node": {
    "key": "/apisix/consumers/example_consumer",
    "value": {
      "create_time": 1649158467,
      "username": "example_consumer",
      "update_time": 1649163154,
      "plugins": {
        "jwt-auth": {
          "base64_secret": false,
          "secret": "my-secret-key",
          "algorithm": "HS256",
          "key": "user-key",
          "exp": 86400
        }
      }
    }
  },
  "action": "set"
}

We can now add the jwt-auth plugin to the Route we have created previously:

See the command

curl http://127.0.0.1:9080/apisix/admin/routes/1 -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d '
{
    "methods": ["GET"],
    "uri": "/get",
    "plugins": {
        "jwt-auth": {}
    },
    "upstream_id": "1"
}'

Response:

{
  "node": {
    "key": "/apisix/routes/1",
    "value": {
      "upstream_id": "1",
      "uri": "/get",
      "create_time": 1648567195,
      "status": 1,
      "id": "1",
      "plugins": {
        "jwt-auth": {}
      },
      "priority": 0,
      "methods": [
        "GET"
      ],
      "update_time": 1649163340
    }
  },
  "action": "set"
}

We want to validate that the setup is correct as we did before.

jwt-auth uses the HS256 algorithm by default. If you use the RS256 algorithm, you must specify the algorithm and configure the public and private keys. Please check the documentation for more details.

First, you need to set up the route for the API that signs the token, which will use the public-api plugin.

See the command

curl http://127.0.0.1:9080/apisix/admin/routes/jas -H 'X-API-KEY: edd1c9f034335f136f87ad84b625c8f1' -X PUT -d '
{
    "uri": "/apisix/plugin/jwt/sign",
    "plugins": {
        "public-api": {}
    }
}'

Response:

{
  "action": "set",
  "node": {
    "key": "/apisix/routes/jas",
    "value": {
      "status": 1,
      "priority": 0,
      "id": "jas",
      "update_time": 1649490287,
      "plugins": {
        "public-api": {}
      },
      "uri": "/apisix/plugin/jwt/sign",
      "create_time": 1649490287
    }
  }
}

Then, run the following command to generate a new JWT token:

See the command

curl http://127.0.0.1:9080/apisix/plugin/jwt/sign?key=user-key -i

Apache APISIX returns a token:

HTTP/1.1 200 OK
Date: Tue, 05 Apr 2022 12:57:34 GMT
Content-Type: text/plain; charset=utf-8
Transfer-Encoding: chunked
Connection: keep-alive
Server: APISIX/2.12.1

<GENERATED_TOKEN>

We can use the newly-generated token to authenticate our next request:

See the command

curl -i -X GET http://127.0.0.1:9080/get -H 'Authorization: <SET_GENERATED_TOKEN>'

Output with token:

HTTP/1.1 200 OK
Content-Type: application/json
Content-Length: 454
Connection: keep-alive
Date: Tue, 05 Apr 2022 13:02:30 GMT
Access-Control-Allow-Origin: *
Access-Control-Allow-Credentials: true
Server: APISIX/2.12.1

If you try to access the same endpoint without a token in the Header request, you will get HTTP Error _401 Unauthorized:

See the command

curl -i -X GET http://127.0.0.1:9080/get

Output without token:

{ "message": "Missing JWT token in request" }

We have validated the client’s identity attempting to request by using various authentication plugins with the help of Apache APISIX.
